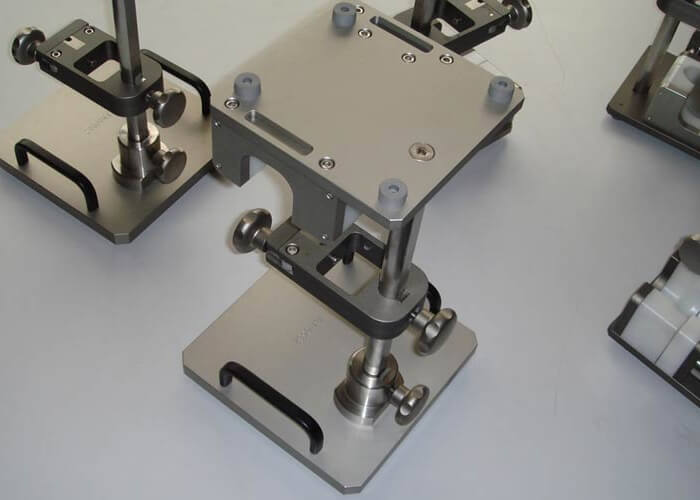

Jigs & Fixtures

Jigs and fixtures are tools used in manufacturing to ensure precision, efficiency, and consistency during the machining, assembly, or inspection processes. Although they are often used interchangeably, they serve different purposes.

Key Features:

• Tool Guidance: Jigs have features that help position the tool correctly, improving precision in drilling, milling, or other machining operations.
• Reduced Setup Time: By providing a consistent reference, jigs minimize the need for frequent recalibrations.
• Stability: Fixtures ensure that the workpiece remains in a fixed position during machining processes, reducing the risk of movement.
• Adaptability: Fixtures can be designed to accommodate multiple parts, allowing for flexibility in production.
